FT4222 Modes

Reference Documents:

FT4222 operates in 4 modes and it’s important to consider the modes while any error occurs due to resource constraints.

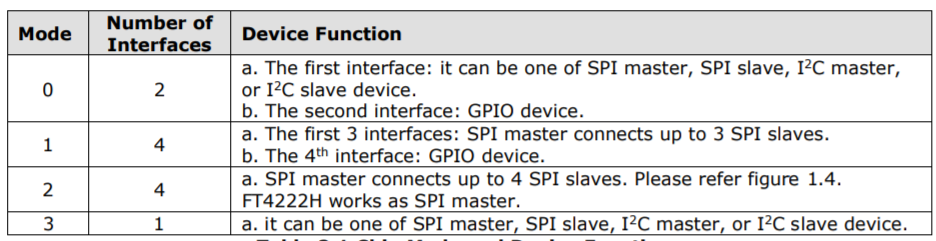

Table explaining the modes and associated interface to those modes.

Below table explains the DCNF0 and DCNF1 pins on UMFT4222 evaluation board for different modes of operation.

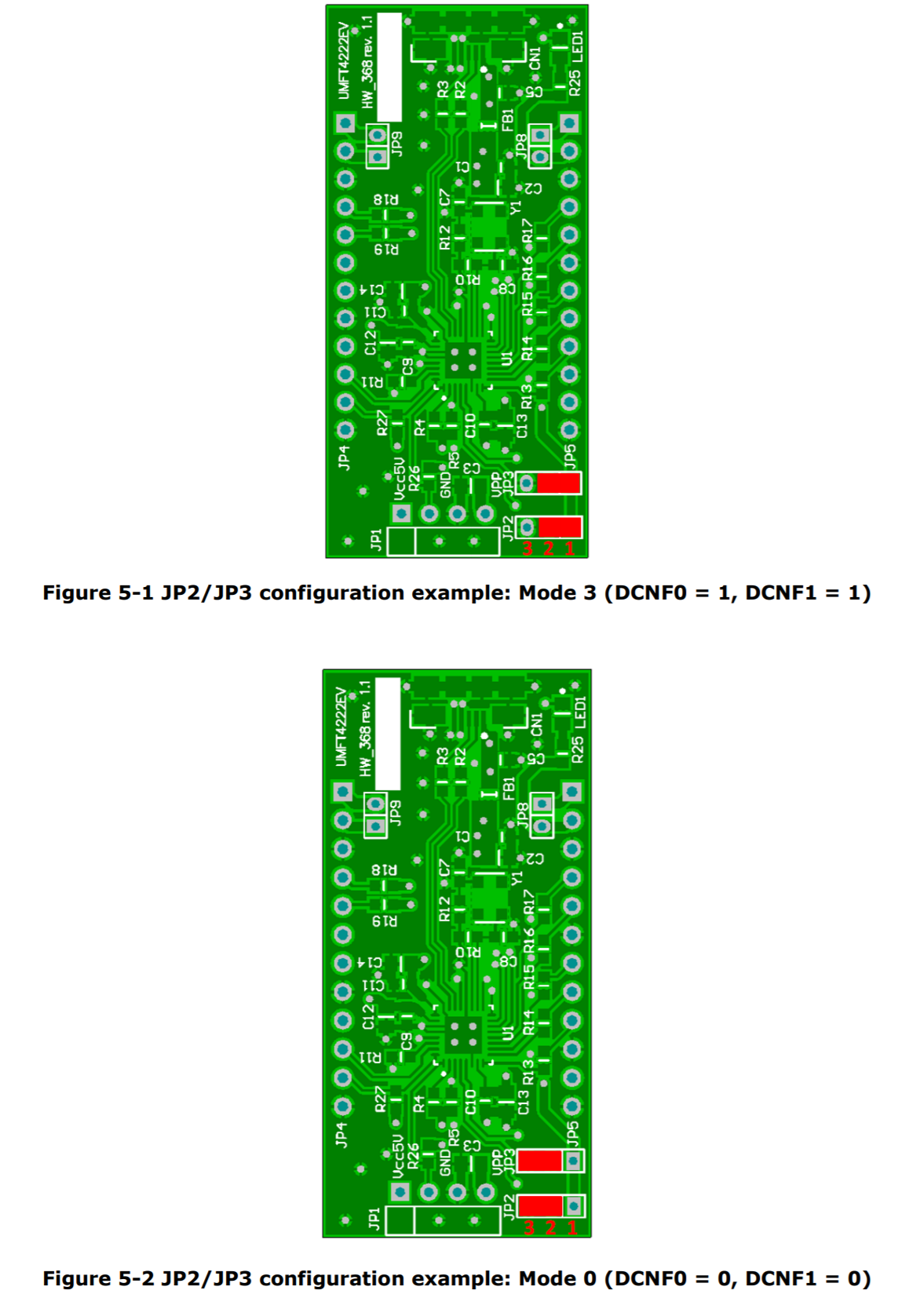

Below is the jumper pin positions for the mode-0 and mode-3
